Brett Martin 160mm x 110mm x 87.5° Solvent Weld Saddle Branch

Key Features

• Allows Quick Lateral Connections: Efficiently connect a 110mm branch pipe into an existing 160mm underground main line without cutting into the main pipe run.

• Solvent Weld Connection: Securely attaches to uPVC pipe using solvent cement, creating a strong, permanent, and watertight joint.

• High-Quality uPVC Construction: Manufactured from durable, lightweight uPVC to withstand ground movement and subterranean pressures.

• Industry Compliant: Fully certified and manufactured in the UK to British Standards (BS EN 1401) for underground gravity drainage.

• Near-Vertical Drop: Features an 87.5° branch angle, ideal for soil pipe connections, rainwater downpipes, or inspection feeds.

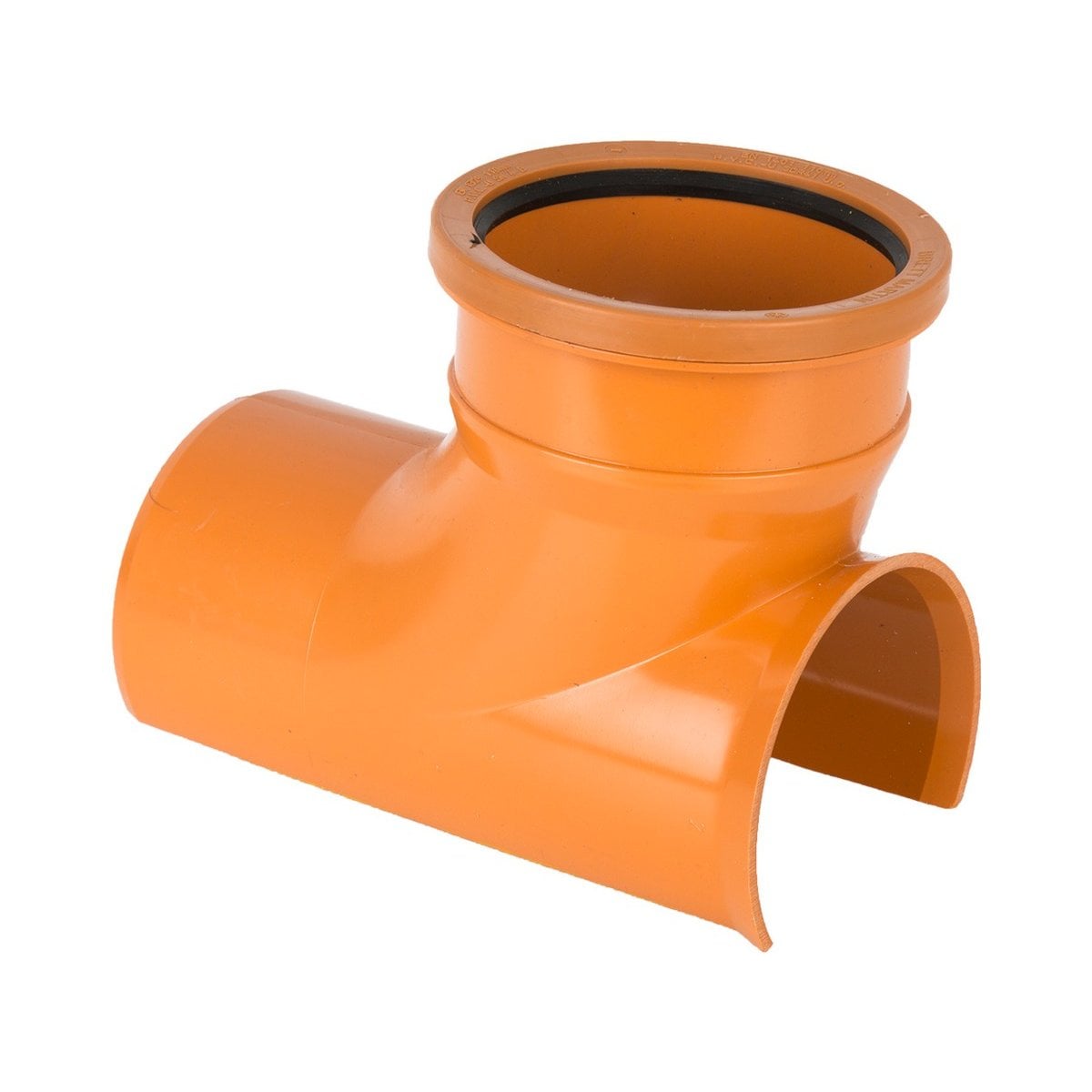

The Brett Martin 160mm x 110mm x 87.5° Solvent Weld Saddle Branch (B7008) is a reliable solution for retrofitting lateral connections into existing underground drainage networks. Designed specifically for commercial and domestic gravity foul and surface water systems, this saddle junction allows you to easily tie a standard 110mm waste or soil line into a larger 160mm main drain.

Engineered with a curved base that clips securely over a 160mm pipe section, the fitting is bonded using solvent weld cement to deliver an airtight and watertight seal. Its near-right-angle (87.5°) offset ensures optimal flow rates while reducing the risk of blockages at the junction.

Made in the UK by industry leaders Brett Martin, this underground drainage fitting is manufactured from robust uPVC, guaranteeing long-lasting performance, chemical resistance, and complete peace of mind.

How do you install a 160mm to 110mm saddle branch?

To install the B7008 saddle, cut a hole into the top of the 160mm main pipe using a hole saw that matches the inner branch diameter. Clean and deburr the pipe surface, apply solvent cement liberally to both the pipe surface and the underside of the saddle, then firmly press and clip the saddle into place until the cement sets.

Technical Specifications Table
