Complete Size Range: Available in 150mm (1TB90), 225mm (2TB90), and 300mm (3TB90) nominal diameters to match standard surface water and highway drainage pipe runs.
High-Strength Twinwall Construction: Features a smooth internal bore for maximum hydraulic flow rates alongside a corrugated outer wall for high ring stiffness and resistance to soil loads.
Integral Double Socket Joints: Pre-formed sockets ensure direct, secure push-fit connection with twinwall pipes without requiring separate couplers.
Watertight & Chemical Resistant: Manufactured from durable HDPE that resists chemical attack, abrasion, and harsh ground conditions (watertight when installed with rubber seals).
Lightweight & Easy Handling: Significantly lighter than traditional concrete or clay fittings, making on-site handling, positioning, and installation fast and safe.

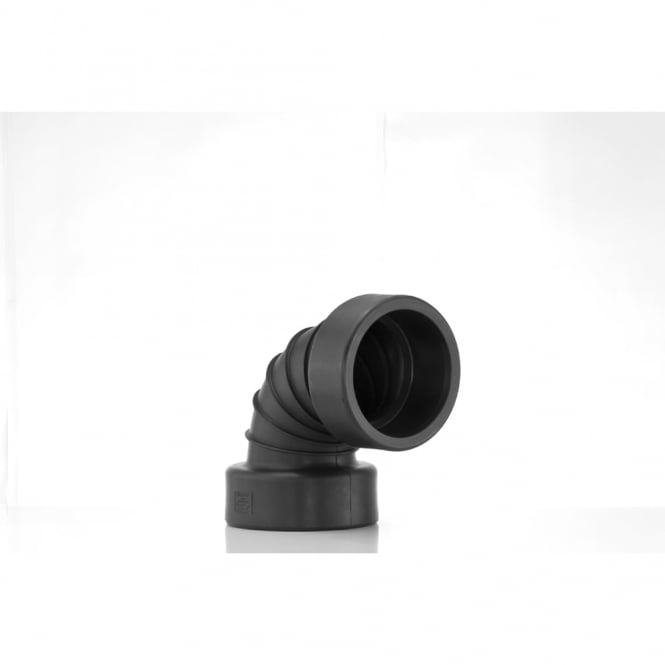

The Brett Martin 90° Socketed Twinwall Bend is a heavy-duty, high-performance drainage fitting engineered for changing direction in non-pressure surface water, civil engineering, and agricultural drainage systems. Built to withstand demanding ground conditions, this 90-degree bend connects directly into corrugated twinwall piping systems to maintain efficient fluid flow across site networks.
Manufactured from high-density polyethylene (HDPE), the fitting combines a smooth inner wall to minimize friction and prevent silt build-up with a structured corrugated exterior that delivers exceptional structural strength under backfill pressure. Featuring integrated double sockets, it allows for fast, tool-free push-fit connections directly onto pipe spigots.
Feature
Specification
Brand
Brett Martin
Material
High-Density Polyethylene (HDPE)
Angle
90° Bend
Joint Type
Double Socketed (Push-Fit)
Application
Surface water, highway drainage, and agricultural runoff (Unpressurised)
Standard Compliance
Manufactured in accordance with relevant UK civil drainage standards
Code:
